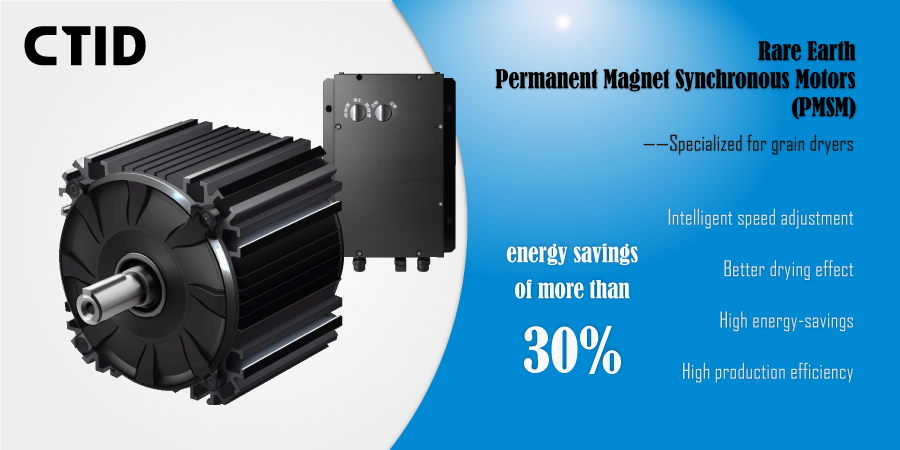

Intelligent dryer motors (PMSM)

    詳細(xì)說明



















    Specilization
    Standardization
    Serialization
    Intelligentization







    We established a professional team focusing on agricutural demands, extensively connecting the industry, and deeply understanding the industry needs. We grasp future development trends and refine efficient solutions.


    All our actions are for the needs and development trends of the great modern agriculture. Design and formulate unified standards for quality, parameters, and performance for products.


    We reasonably plan and develop a series of products to meet different needs according to demands so that customers can obtain high-quality professional motors in one stop.


    We provide a digital base to visualize breeding data, realize unattended, remote control, and automatic management of production equipment, and promote the development of agriculture in standardization and scale.













    Durability

     Low energy

    Strong overload

    Large torque







    No wearing parts such as brushes and collector rings.  IP66 dustproof and waterproof. Multiple protections such as WF1 anti-corrosion, F-class insulation, overcurrent, overload, overvoltage, undervoltage, overheating, etc. More stable and durable.


    Energy efficiency level IE5. Permanent magnet excitation, no current excitation. High power factor, No rotor consumption. Energy savings of more than 30%.


    Greatly avoid the risk of burn-in and frequent shutdown within the range of temperature protection.


    They can run at a very low speed and constant torque under the premise of ensuring high efficiency and energy saving, which is different from the low efficiency of traditional motors at low speed and high torque.













    Small in size

    Light in weight

    Low noise
    Stepless speed







    Simple and small structure compared with traditional motors due to fewer components such as brushes, collector rings, rotor copper wire windings, and commutators.


    Simple structure, and light in weight compared with traditional motors due to fewer components such as brushes, collector rings, rotor copper wire windings, and commutators.


    Brushless rotors are driven by permanent magnets. High-quality brand bearings and outer dynamic balance rings are applied.  Magnetic circuit designs are excellent. Those help to achieve low-noise operations.


    Brushless operation technology was adopted for precise speed regulation. 0~10V analog, RS485 speed regulation, and ultra-wide speed regulation ratio. No gear with smooth speed regulation.







    Specialized Products
    Intelligent Drying


    The products are designed, developed, and produced according to  standardization and serialization for dryers. They provide effective solutions. They are safe and reliable with multiple protections against over-current, overload, over-voltage, under voltage, over temperature, and others, more than IP67 class dustproof and waterproof, WF1 class anti-corrosion, and F class insulation protection.



    Data visualization, operation visualization, device interconnection. The motors can be started or stopped according to preset tasks. The speed can be adjusted intelligently. Support unattended and multi-terminal remote control and other intelligent management. Those make drying to achieve standardization and scale operation.


    Better drying effect
    High Production Efficiency


    In the process of drying, the wind speed has a great influence on the quality of drying things. CTID rare earth PMS motor has a stepless speed regulation function, can reasonably adjust the wind speed, drying effect is more ideal.



    Energy efficiency grade IE5, energy saving up to 30%. Stable and reliable operation. Low maintenance cost.





     Control Method: Modbus, 0~10V, digital inputMechanism: Direct drive

     Protection Grade: IP67 dustproof and waterproof, WF1 anti-corrosionInput Frequency: 50Hz / 60Hz

     Rotation Direction: Clockwise / anticlockwise (optional)Operating Temperature: 0℃ ~ +80℃

     Installation Method: Cable-stayed, horizontal, verticalOperating Humidity: 10% ~ 95%


     Housing's Material: Aluminum alloyMotor Structure: Split type


     Protection Method: Softwares and hardwares' overvoltage and undervoltage; Driver's overtemperature, overcurrent, and overload.


    ModelRated Power (kW)Rated Voltage(V)Speed Range(rpm)Efficiency Class
    MFS145-1114E-A3XC
    1.1
    220 / 380200~1500
    IE5
    MFS145-1514E-A3XC1.5220 / 380200~1500
    IE5
    MFS145-2214E-A3XC2.2220 / 380200~1500IE5
    MFS160-3014E-A3XC
    3.0220 / 380200~1500IE5
    P.S.: These motors are mainly used in drying machinese for drying grains, tobacco, Chinese herbs, vegetables, fruits, seafood, mushrooms, and other things.
